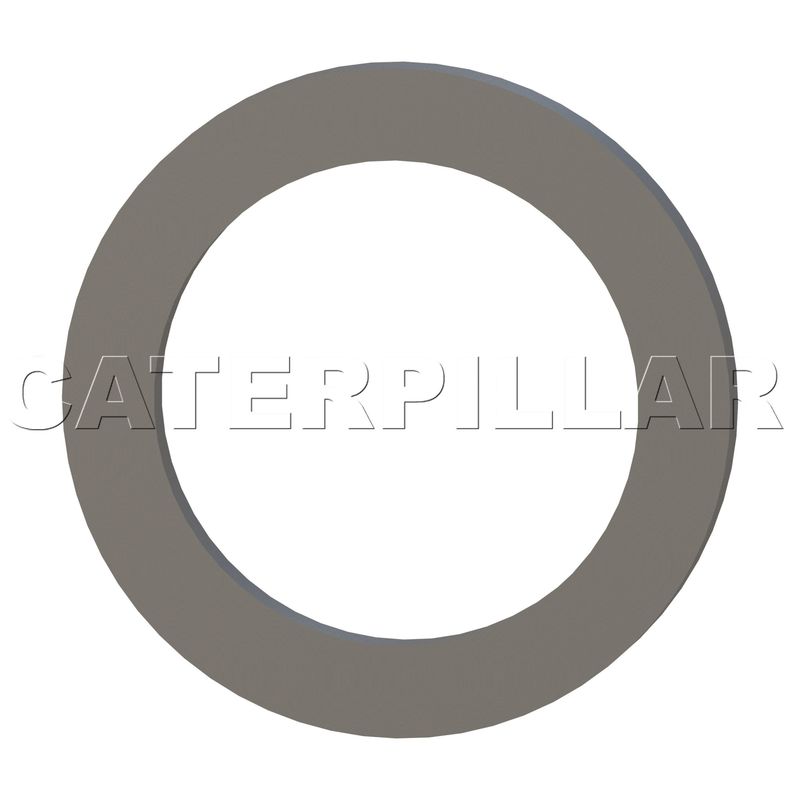

185-0551: RING-BACKUP Caterpillar
  • 185-0551: RING-BACKUP Caterpillar
185-0551: RING-BACKUP Caterpillar

185-0551: RING-BACKUP Caterpillar

Place of Origin China
Certification ISO CE
Product Details
Cross Section Height (mm):
2
Cross Section Width (mm):
1.2
Inside Diameter (in):
0.49
Notes:
Dimensions And Material Descriptions Provided For Reference Only. Color May Differ From Image.
Material:
PTFE - Polytetrafluoroethylene
Cross Section Height (in):
0.08
Material Description:
PTFE Provides Superior Performance In Air, Engine Oil, Diesel Fuel And Coolant Applications, But Is Sensitive To Installation Damage And Debris. It Works Well At Very High Temperatures.
Inside Diameter (mm):
12.5
Cross Section Width (in):
0.05
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
According to customer needs
Delivery Time
7-15 working days
Description
Backup Ring
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000 Piece/Pieces per Month
Product Description

Description:
Backup Rings prevent seal extrusion in high pressure applications, and may be used to protect the life of overall sealing system from pressure surges.

Attributes:
Cat® Backup Rings are designed in conjunction with the elastomeric seal and mating components, and contribute significantly to the life and performance of the sealing system in high pressure applications.

Backup ring dimensions are consistently held to tight tolerances to ensure they properly bridge the seal groove and the mating surface. Materials are selected for their pressure and abrasion resistance.

Backup rings may be solid or split. Split rings are used for ease of assembly.

Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals.

Applications:
Backup rings are used in high pressure static and dynamic sealing applications, such as hydraulic pumps, valves and engine systems.
