124-8364: Piston Seal Caterpillar
Basic Properties
Place of Origin:
China
Certification:
ISO CE
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100000 Piece/Pieces per Month
| Groove Diameter - B (+/- 0.0762 Mm) (mm): | 152.30 | Groove Width - A (+/- 0.002inch) (in): | 0.79 |
|---|---|---|---|
| Groove Diameter - B (+/- 0.003inch) (in): | 6.00 | Bore Diameter (mm): | 177.80 |

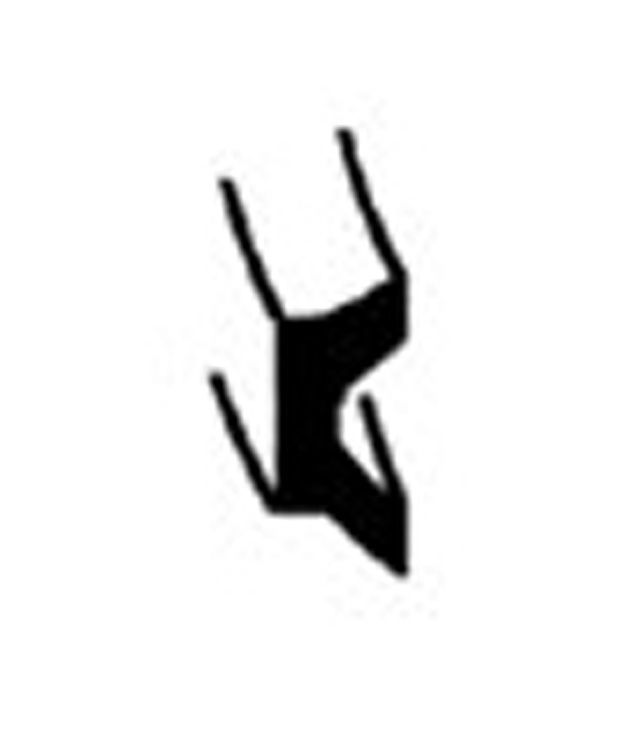

| Bore Diameter (in): | 7.00 | Seal Shape: | Type 6 |
| Groove Width - A (+/- 0.0508 Mm) (mm): | 20.00 |
Product Description
A two-piece seal, consisting of a piston ring and an expander, which prevents oil transfer between the rod end of the cylinder and the cap end. The piston seal is usually made of , with nylon available for pressure greater than 3000 psi (20,670 kpa). The various shaped expanders are nitrile.
